The new Raspberry Pi 4B Models with Max2Play

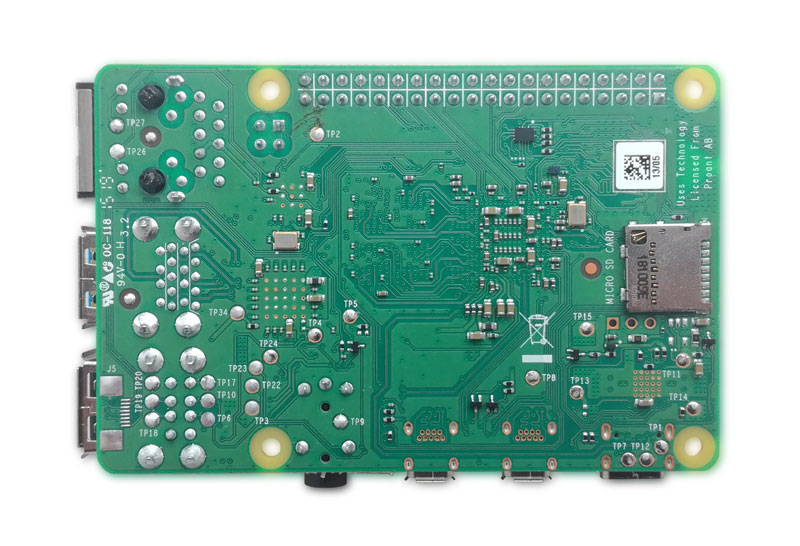

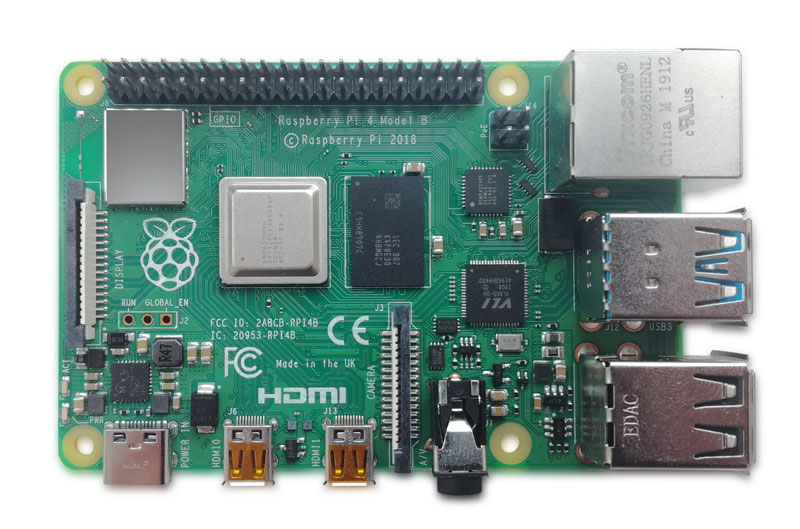

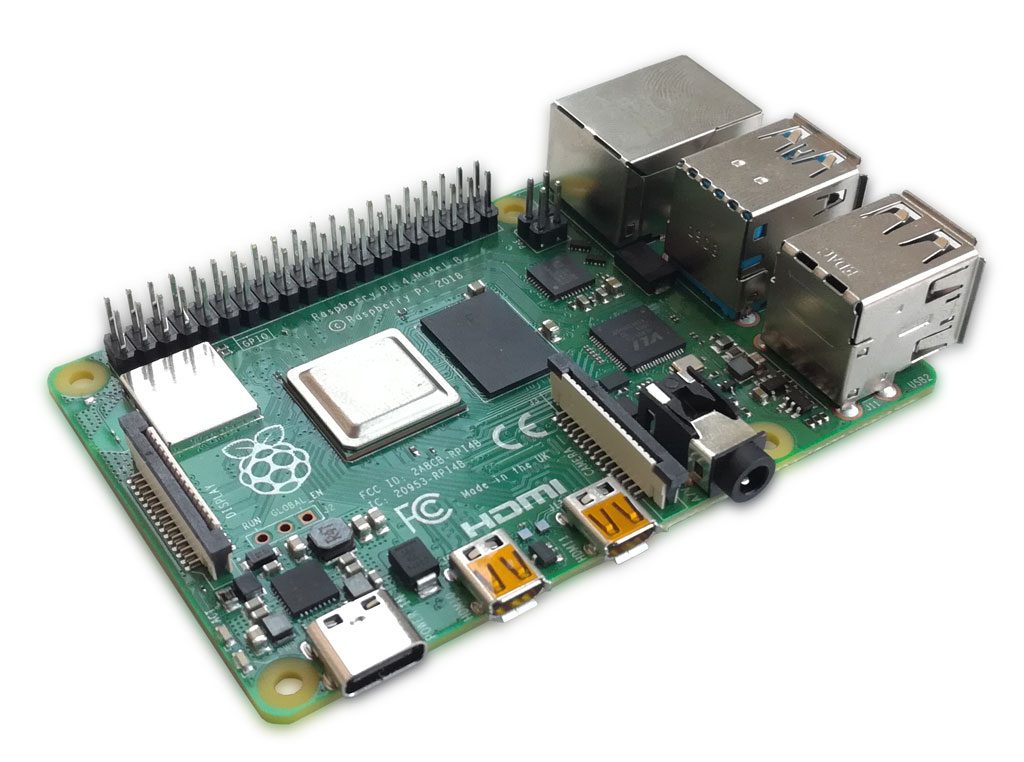

The new Raspberry Pi 4

Max2Play is now offering the new Raspberry Pi 4B! We have collected all pertinent information here, to help you decide whether this new Raspberry Pi is the best choice for your setup.

As the name suggests, this is the successor to the popular Raspberry Pi 3 which we have been using as our standard for all bundles for a few years now. To find out what has changed and what has stayed the same, check out the technical specifications and breakdown of all the changes below.

Explore all Raspberry Pi versions

Also available as a bundle with DAC sound card

New Models

The new Raspberry Pi 4 is available in three different versions with different RAM. We currently offer the 4GB model.

Improved Interfaces

In addition to two USB-2 ports, you now also have two USB-3 ports that can transfer data up to 10 times faster.

Instead of the predecessor's HDMI port, the Raspberry Pi 4 has two micro HDMI ports, supporting up to two 4k displays.

More Power

The Raspberry Pi 4 now has a USB-C port for power supply. To properly operate the Pi, a 15W power supply is needed.

With the 4-Core Broadcom BCM2711 the processor performance is increased to 1.5Ghz.

Technical Details Overview

Raspberry Pi 4B Raspberry Pi 3B+ Raspberry 3B
CPU Broadcom BCM2711, Cortex-A72 Quad Core 64-bit 1.5GHz Broadcom BCM2837B0, Cortex-A53 Quad Core 64-bit 1.4GHz Broadcom BCM2837, Cortex-A53 Quad Core 64-bit 1.2GHz
GPU VideoCore VI with OpenGL ES 3.0 graphics VideoCore IV with OpenGL ES 2.0 graphics VideoCore IV with OpenGL ES 2.0 graphics
RAM 1GB, 2GB, 4GB or 8GB LPDDR4-2400 SDRAM* 1GB LPDDR2 SDRAM 1GB DDR2 RAM
Wi-Fi, Bluetooth, Ethernet 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE, Gigabit Ethernet 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 4.2, 300Mbps Ethernet 802.11n wireless, Bluetooth 4.1, BLE, 100Mbps Ethernet
USB 2 × USB 3.0 Ports; 2 × USB 2.0 Ports 4 × USB 2.0 Ports 4 × USB 2.0 Ports
GPIO Standard 40 pin GPIO header (fully backwards compatible with previous boards) Extended 40 pin GPIO header Extended 40 pin GPIO header
HDMI 2 × micro-HDMI Ports (up to 4kp60 supported) 1 × Standard HDMI Port  1 × Standard HDMI Port
Display, Camera 2-lane MIPI DSI Display Port, 2-lane MIPI CSI Camera Port MIPI DSI Display Port, MIPI CSI Camera Port MIPI DSI Display Port, MIPI CSI Camera Port
Further Connections 4-pole stereo audio and composite video port 4-pole stereo audio and composite video port 4-pole stereo audio and composite video port
Codecs H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode) H264 (1080p30 decode, 1080p30 encode) H264 (1080p30 decode, 1080p30 encode)
SD-Slot Micro-SD card slot Micro-SD card slot Micro-SD card slot
Power Supply 5V DC via USB-C connector (minimum 3A*²) or 5V DC via GPIO header (minimum 3A*²), PoE 5V DC via micro-USB connector (minimum 2.5A) or 5V DC via GPIO header (minimum 2.5A), PoE 5V DC via micro-USB connector (minimum 2.5A) or 5V DC via GPIO header (minimum 2.5A)



*Currently we sell all versions except the 1GB one, depending on stock.

*² A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.

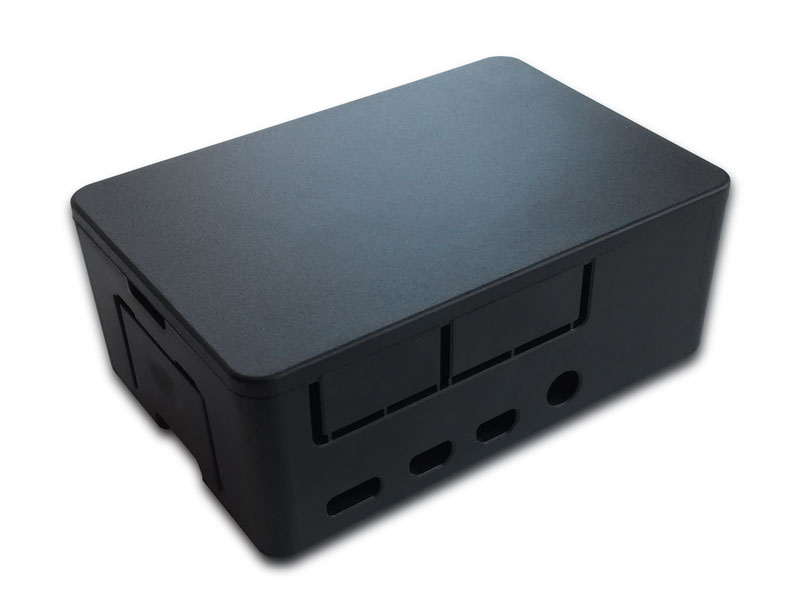

The right case for your Pi 4

We now also offer a suitable case for the Raspberry Pi 4. Based on the HifiBerry Universal Case, this version has been adapted to the new requirements of the Pi 4. It is compatible with all HiFiBerry HAT boards, including the DAC+, DAC+ Pro, Digi+, Digi+ Pro and AMP2.

Purchase the case here

Included in these bundles:

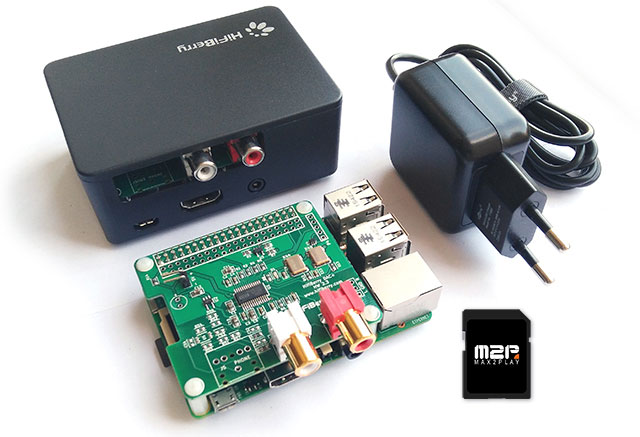

HiFiBerry DAC Bundle

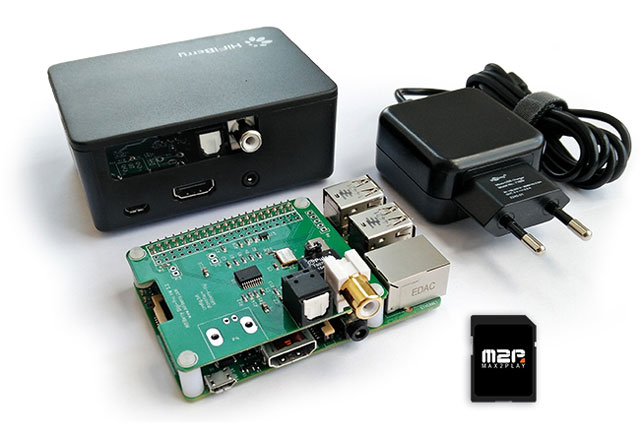

HiFiBerry Digi Bundle

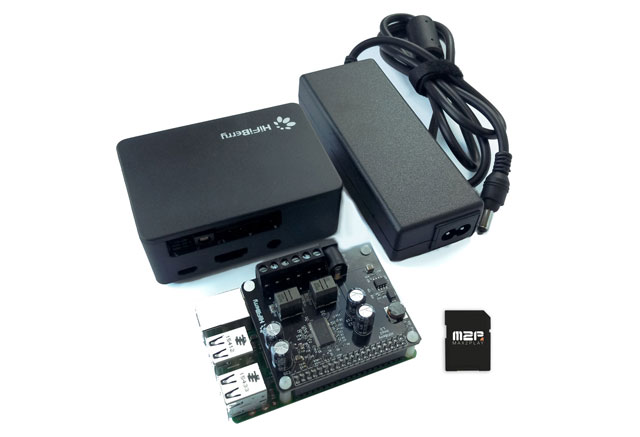

HiFiBerry Amp2 Bundle

6 Comments

  1. OSVALDO LÓPEZ 4 Jahren ago

    Quisiera saber si el kit Pantalla táctil Raspberry Pi de 7 “ con Hifiberry DAC viene con la Raspberry Pi 4 de 4 GB?. Porque no me da la opción de seleccionar alguna tarjeta. Saludos y gracias.

    • Author
      Heiner 4 Jahren ago

      Dear Mr. Lopez,

      Regarding your question about the Raspberry Pi 4B with this kit: The Pi 4B has different outputs than the 3B and 3B+ as well as a couple of other differences that make it incompatible with this kit. In general, we recommend using the 3B and 3B+ for most Max2Play applications.

  2. Damian Bertschi 4 Jahren ago

    How can I use mpeg-2 with raspberry 4b? In raspberry 4 there is no hw decoding for mpeg-2. How do I activate software decoding for mpeg-2 with raspi 4?

  3. richard austin 4 Jahren ago

    Am I to understand the 7″ screen and PRI4 are not compatible with ANY M2P software?

    • MarioM 4 Jahren ago

      Dear Mr. Austin,

      We offer a Buster Image on our download page for using the Pi 4 with Max2Play. You can also use a 7″ screen with the Pi 4 and Max2Play without any problems.
