New JustBoom Sound Cards for the Raspberry Pi Zero

New JustBoom Sound Cards for the Raspberry Pi Zero

JustBoom introduced a new product line with their new sound cards for the Raspberry Pi Zero. The Pi Zero with its more compact format is very useful for IoT or portable projects. Now the Zero variations of the JustBoom DAC, Digi and Amp sound cards are available, complementing the Raspberry Pi. Despite the smaller size, the Zero sound cards are quite powerful, making them ideal for everyone who wants to build smaller projects but still enjoy uncompromizingly great sound quality.

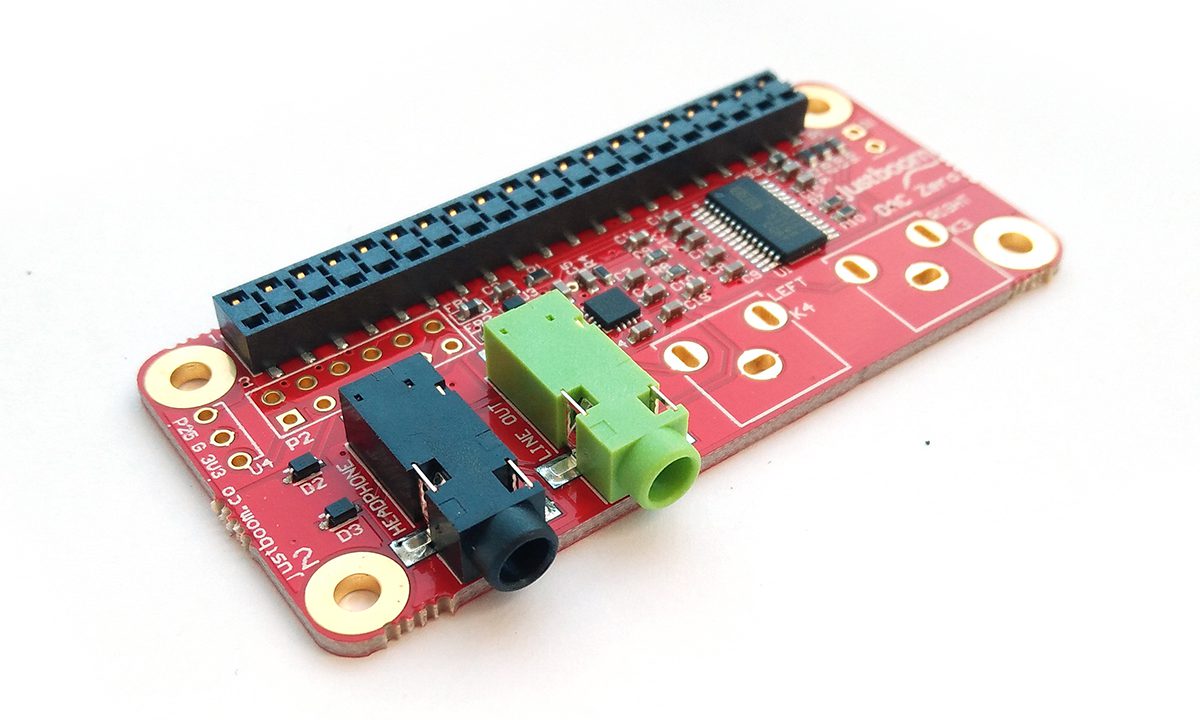

Justboom Dac Zero pHAT

The JustBoom DAC Zero pHAT for the Raspberry Pi Zero is a Digital-to-Analogue-Converter with a 384kHZ/32 bit DAC Chip and a 138mW headphone amplifier. Perfect for all, who want to enjoy brilliant sound in a compact format. The DAC simply has to be connected to the Raspberry Pi Zero, no soldering is required. Also, additional sensors, buttons, LEDs and rotary encoders can be added (this applies to all three JustBoom Zero sound cards).

Technical details:

  • High-quality Texas Instruments PCM5121 Audio DAC – 384kHz / 32bit. (Limited by Linux drivers to 192KHz/24 bit)
  • Includes DAC as well as headphone amplifier
  • Line-Level-RCA and 3.5mm headphone jack
  • Optional Vishay TSOP4838 IR-receiver included in shipment
  • HiFi Sound: 112db (SNR), -93db (THD)
  • Advanced ESD-protection for headphone and cinch outputs
  • Completely integrated hardware volume mixer via „ALSAmixer“
    or another ALSA-compatible application
  • Texas Instruments TPA6132A2 headphone amplifier – 138mW
  • Dimensions (LWH): 65mm * 33mm * 6mm
  • Weight: 0.01kg

Here you can find the Justboom Dac Zero pHAT

Also available as a bundle with the Raspberry Pi W

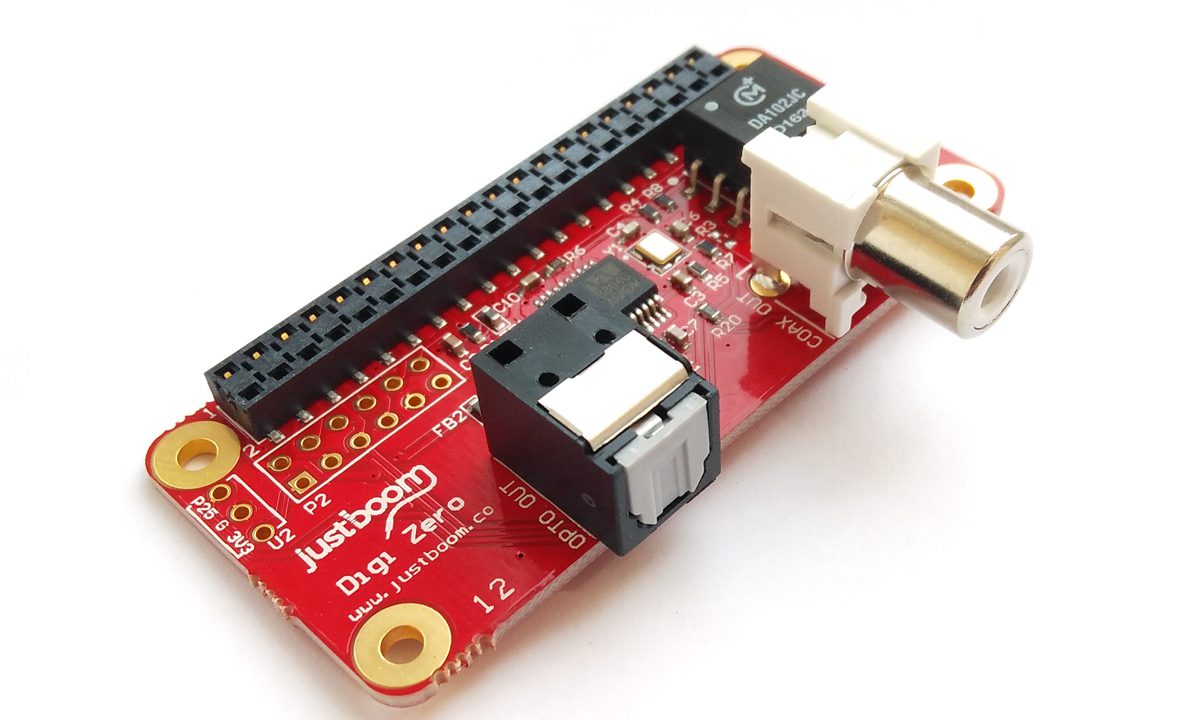

Justboom Digi Zero pHAT

The JustBoom Digi Zero pHAT adds a high-quality digital audio output to the Raspberry Pi Zero. The Digi has a digital audio chip made by Cirrus Logic with 192kHz/ 24Bit for a clean digital output, an output transformer for full galvanic isolation and an optical (TOSLINK) as well as a coaxial (RCA) output. With this combination, the Zero-version of the Digi offers an uncompromizing, high-quality audio experience. The sound card is powered by the Raspberry Pi Zero and doesn’t need an additional power supply.

Technical details

  • 112db SNR and -93db THD for Best-in-Class audio
  • Advanced ESD-protection for headphone and cinch outputs
  • Completely integrated hardware volume mixer via „ALSAmixer“
    or an ALSA-compatible application
  • Murata Power Solutions DA101JC Audio Digital transformer
  • Dedicated S/PDIF transceiver (Cirrus Logic WM8804GEDS) with 24bit / 192khz
  • Dimensions (LWH): 65mm * 40mm * 13mm
  • Weight: 0.01kg

Here you can find the Justboom Digi Zero pHAT

Here you can finde the Digi Zero Bundle with the Raspberry Pi Zero W

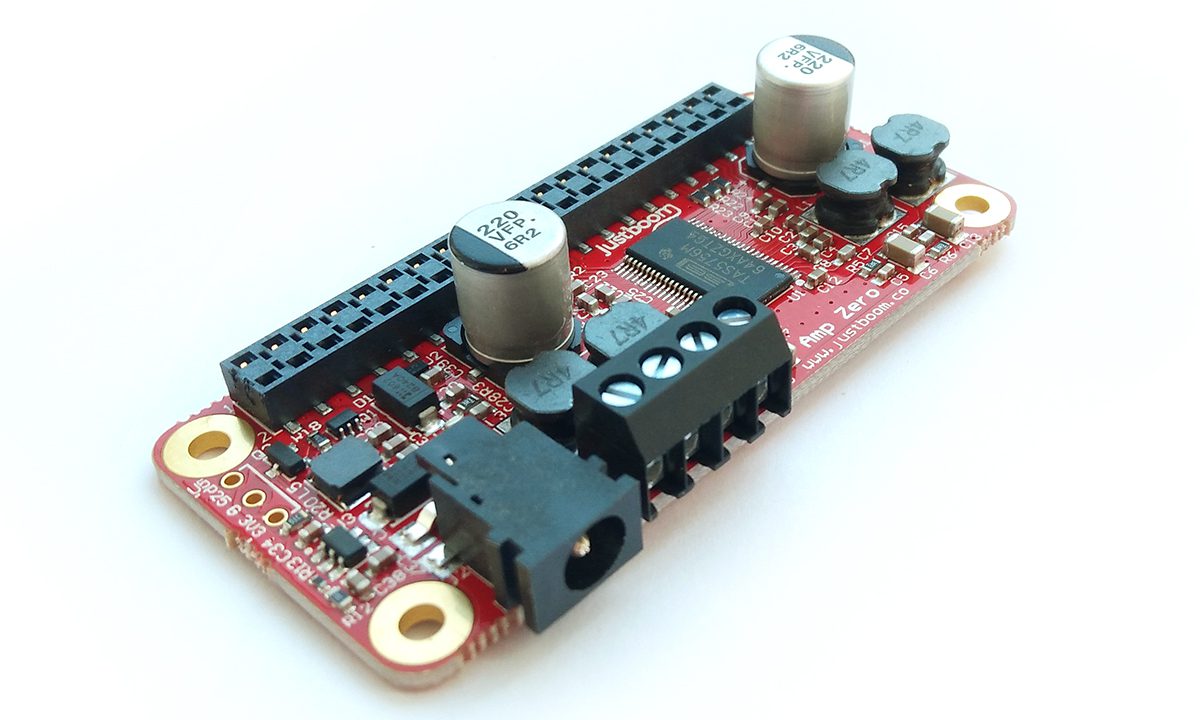

Justboom Amp Zero pHAT

The JustBoom Amp Zero pHAT with 2×40 watts maximum output power is a high-quality audio amplifier for the Raspberry Pi Zero. The Amp is easy to install and use. The small sound card has a class-D amplifier chip with 192kHz/32Bit for a peek output power of 2×40 watts. The necessary 2,5A power supply powers the Raspberry Pi as well, so you still only need one power supply.

Technical details:

  • Full-HD Audio – 192kHz / 32bit
  • 40 watts maximum power output and 30 watts RMS
  • TAS5756 digital audio AMP – Class D
  • Texas Instruments TPA6133A2 headphone amplifier – 138mW.
  • 112db SNR and -93db THD for Best-in-Class audio
  • Advanced ESD-protection for headphone and cinch outputs
  • Completely integrated hardware volume mixer via „ALSAmixer“ or another ALSA-compatible application
  • Optional Vishay TSOP4838 IR-receiver included
  • Dimensions (LWH): 65mm * 33mm * 12mm
  • Weight: 0.015kg

Here you can finde the Justboom Amp Zero pHAT

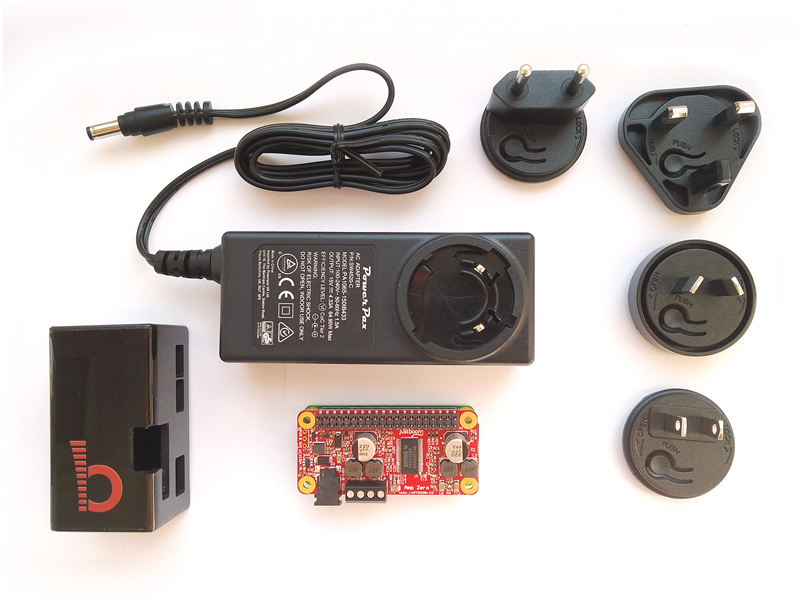

And here the Amp Zero Bundle with the Raspberry Pi Zero W
