We have now made the Rotary Encoder compatible for the JustBoom sound cards. The volume change is made on the ALSA level and directly influences the Squeezelite Audio Player. With Max2Play, it is even possible to synchronize the volume control of the audio player Squeezelite with the Squeezebox Server. As usual, all necessary options are available in the latest version of the JustBoom plugin. You can implement the whole thing with our guide quite simply:

What you need:

  • a rotary encoder
  • 3 GPIO-pins
  • 3 cables of any length

The Rotary Encoder is available here

We recommend to use the rotary encoder with the volume knob

Example how to connect a rotary encoder to JustBoom DAC HAT sound card.

Instructions

1

Step 1

First the rotary encorder must be mounted, as shown in the picture above. To do this you need to solder 3 pins, to the 3rd (GND), 8th (#23) and 9th (#24) points on the GPIO bar of the JustBoom sound card.
// For mounting on the Amp HAT, the pins have to be soldered a bit differently. Here you will find an overview of the Pinouts.
2

Step 2

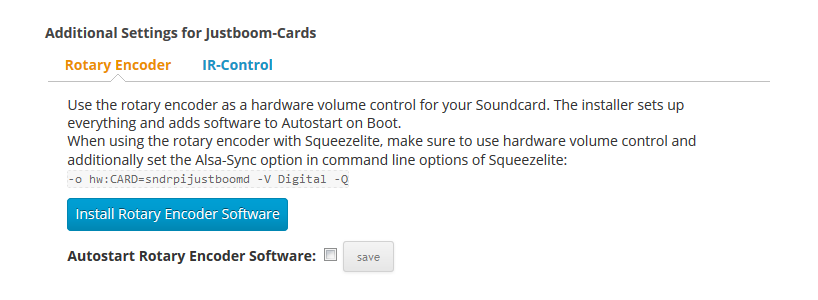

After an update of our JustBoom plugin, which can be downloaded here, additional settings are available in the JustBoom tab. Click on „Install Rotary Encoder Software“ to install the software. After that, the system requires a reboot.
3

Step 3

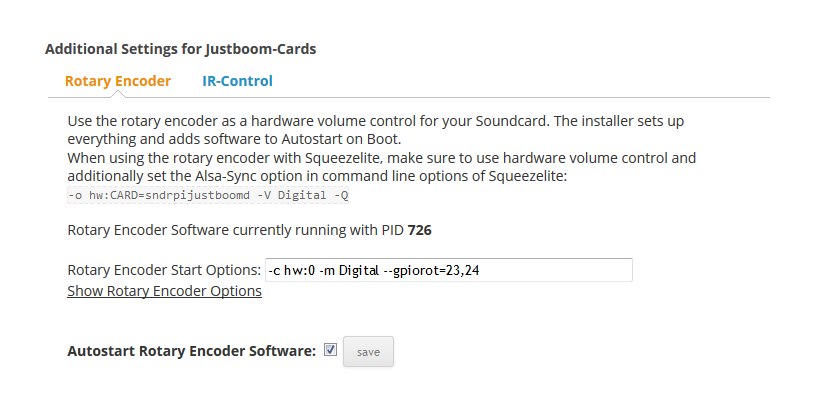

After the restart, the Rotary Encoder is ready for use. By clicking on „Show Rotary Encoder Options“ you can view the current settings and customize them by adding the displayed parameters as desired. For example , to change the louder-quieter direction, simply change the „–gprorot=23,24“ parameter to „–gpiorot=24,23“.

Additional installation of a Play/Pause button for Squeezelite

1

Step 1

First the rotary encorder must be mounted, as shown in the picture. To do this you need to solder 5 pins, to the 3rd (GND), 8th (#23), 9th (#24), 10.(GND) und 11.(IR Rcv) points on the GPIO bar of the JustBoom sound card.
// For mounting on the Amp HAT, the pins have to be soldered a bit differently. Here you will find an overview of the Pinouts. The button needs to be soldered at (IR In) and (GND) of the U5 area.
Overview how to connect rotary encoder with button function to JustBoom DAC HAT sound card.
2

Step 2

Follow step 2 and 3 of the basic instruction (see above).

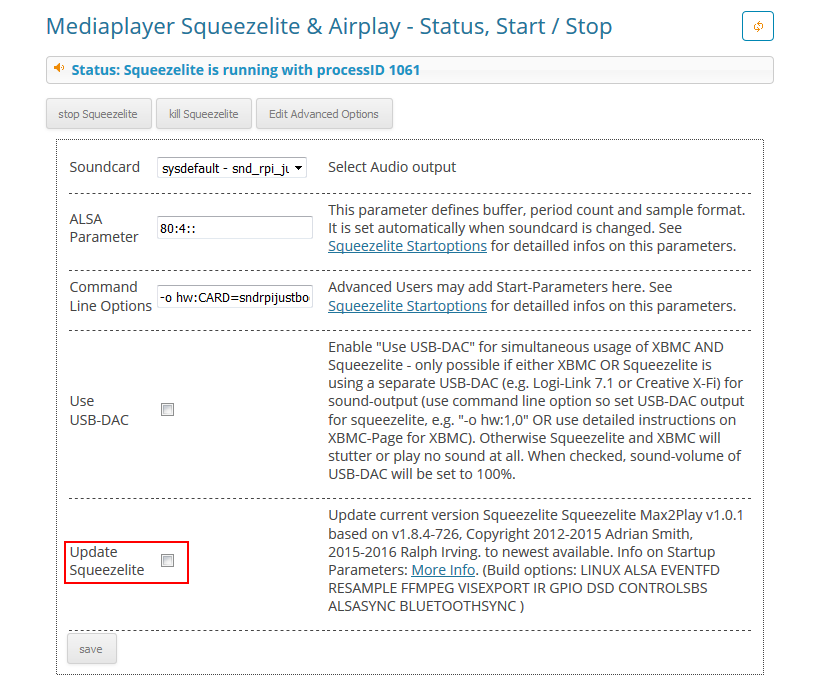

If you are using an older version of Squeezelite, you need to update it in the Audioplayer tap to get support for the button.
3

Step 3

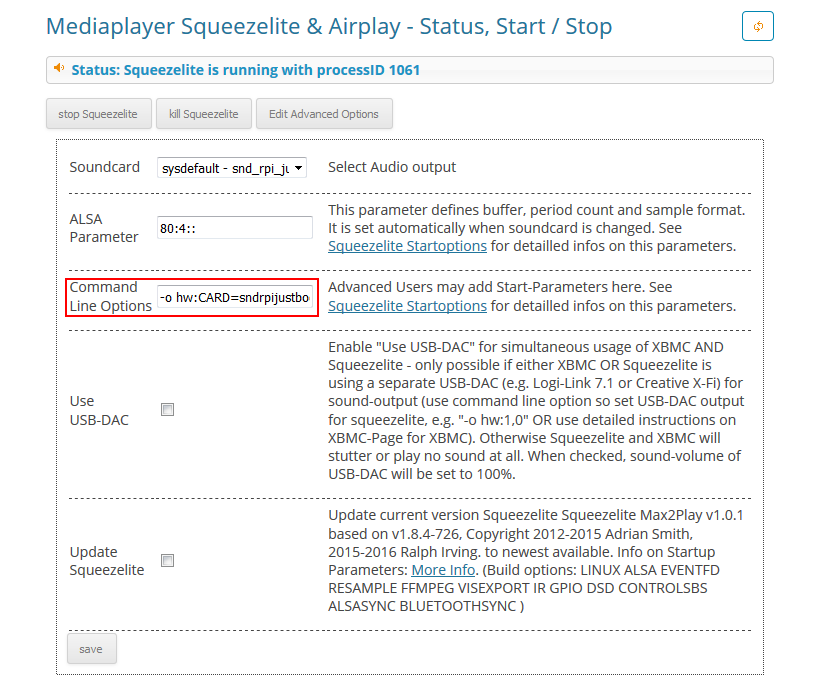

At least the following command line options must be added under Audioplayer > Squeezelite > advanced options: -o hw:CARD=sndrpijustboomd -V Digital -Q -X 25

Everything connected and integrated in the JustBoom case, the whole thing could look like this:

Modifiziertes JustBoom DAC HAT Case von innen mit Rotary Encoder und Button.
JustBoom DAC HAT Case mit Rotary Encoder und Button.
