Time and Date when off.

Tagged: , , ,

This topic contains 36 replies, has 7 voices, and was last updated by  Raymond Day premium 4 months, 1 week ago.

Viewing 30 posts - 1 through 30 (of 37 total)
  • 24. September 2015 at 12:03 #15798

    Looks like can’t turn the screen off when you turn off the Max2Play. It’s black but still light up in black.

    Can you add the time and Date like how they have it on the Squeezebox radio when it’s off can set up to 5 clock types.

    I guess this is in the code of Max2play? Not sure how you would add it, if can.

    29. September 2015 at 17:33 #15886

    Hi Raymond,
    This feature is in Jivelite, whose properties we have not changed. It would be a lot of work for us to incorporate this feature. We are researching on it, but we cannot guarantee to offer it in the near future.

    14. October 2015 at 9:44 #16349

    Hi Raymond,

    great news! We added your requested feature to Jivelite. Both an analog and a digital clock are now available in the screensaver menu after updating Max2Play to the beta channel.

    Please have a first look:

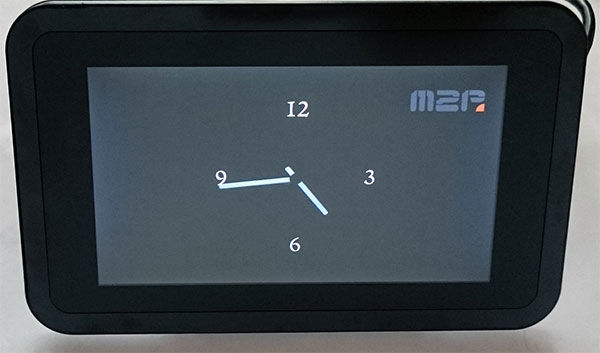

    Analog clock
    Analog Clock Screensaver for Jivelite

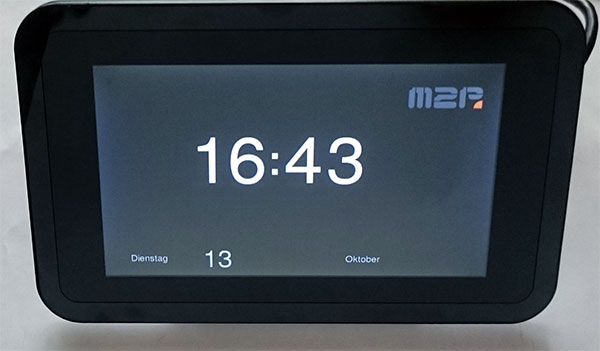

    Digital clock
    Digital Clock Screensaver for Jivelite

    What do you think about it?

    Maximilian from Max2Play

    14. October 2015 at 15:09 #16362

    Super! It worked. I updated it last night to Beta but could not get it to do the clock, and then in the morning today checked my e-mail and went here and it looked super.

    Did a “Update2Beta Max2Play” and it worked. I could go in the screen saver and pick what clock to use when it’s off.

    That’s so good.

    I guess the only other thing is what size the clock or fount I guess you say would be. It’s looks a little small on the big 7 inch screen.

    I got this photo of mine.

    Clock now works as a screen saver on Bata-151014 todays date.

    Thank you so much. Only doing the Beta on one of mine.

    Love it very impressed!

    • This reply was modified 1 year, 1 month ago by  Raymond Day.
    14. October 2015 at 15:17 #16364

    How hard would it be now to get it to work on the small 2.8 inch touch screen now?

    I would of thought it would just work scale it to the screen.

    Thank you again!

    14. October 2015 at 17:12 #16369

    I just updated my other 7 inch touchscreen one it has the HiFiBerry on it. It’s updated to Version Beta-151014 and I rebooted it and still no clock setting on it. But it works on my other one that don’t have the HiFiBerry.

    Is something wrong because it don’t work on the HiFiBerry one?

    -Raymond Day

    14. October 2015 at 17:40 #16370

    I got it working on my HiFiBerry. Had to update the Jivalite (Jivelite start installation) I clicked, and then reboot and now it has the clock on it too.

    Looks very good.

    Thanks yet again!

    -Raymond Day

    15. October 2015 at 9:48 #16374

    Hi Raymond,

    we have not tested the clock screensavers with the 2,8 inch display so far, but it should work with it, too. Ironically, we guess there is a risk of a screen burn-in with the 2,8 inch display, so be careful when testing on your own.

    Glad you got your second device working.

    Maximilian from Max2Play

    15. October 2015 at 10:30 #16375

    I had to update Java and reboot the 2.8 inch display. The clock does work on it. But only see the top left corner of it. It cuts it off.

    So it does work but just have to fix it a little for 2.8 inch display’s.

    Was thinking it be nice if could put a light sensor on the GPIO pins to dim it down as the light in the room goes down. That’s what the squeezebox radio does.

    It does seem bright at night time.

    I will turn it off on the 2.8 inch display. I guess like you said it can burn it in.

    -Raymond Day

    26. March 2016 at 12:19 #19468

    Hallo liebes Max2Play Team,

    gibt es schon eine Lösung für das 2,8″ Adafruit-Display um die Uhr anzuzeigen?
    Das wäre wirklich eine ganz tolle und praktische Sache.

    Vielen Dank und macht weiter so..

    1. April 2016 at 15:02 #19571

    Hallo lomex,
    Leider können wir dir diese Feature nicht für den 2,8″ Display anbieten, da es Berichte von Einbrennproblemen bei diesen Displays gab und wir deshalb immer einen schwarzen Bildschirm für diese Screens empfehlen.

    11. April 2016 at 8:02 #19738

    Still can’t get the clock to work on the C1 3.2inch TFT+Touchscreen Shield with my Odroid C1+ and HiFi Shield.

    Did you test with this setup?

    13. April 2016 at 16:38 #19766

    Hi Raymond,
    Unfortunately, we do not have this touchscreen in our offices to test it. The list of currently supported screens can be found in our feature section on the detail page of the RPi-Display plugin: click

    24. May 2016 at 21:24 #20249

    Hi !

    I made a beta upgrade of my M2P in order to have a big clock on my 3.2″ touchscreen (Card C1). Unfortunately, i didn’t find this screensaver. What is is name ?

    Have a look on my screen (numeric clock) :

    • This reply was modified 6 months, 2 weeks ago by  Bristow.
    25. May 2016 at 9:57 #20255

    It’s “Settings, Screen, Then Screen savers. I don’t think the clock works on the 3.2″ I my be wrong on that.

    -Raymond Day

    25. May 2016 at 10:00 #20256

    Argh, i have upgraded on beta only for that. Do we need to re-install Jivelite after upgrade on beta ?

    2. June 2016 at 22:02 #20460

    Maximilian, which files i have to modify on Jivelite in order to make a numeric clock ScreenSaver for 3.2inch TFT for Odroid C1 ?

    20. June 2016 at 14:32 #20758

    Hi Bristow,

    you have to modify the Clock Applet in “/opt/jivelite/jivelite/share/jive/applets/Clock/ClockApplet.lua” and add the skinname that is used for your 3.2inch display with the correct positioning for the elements shown on the screen. The function you have to modify is:


    -- DIGITAL CLOCK SKIN
    function Digital:getDigitalClockSkin(skinName)


    Try to have a look at how we changed the Digigtal Clock positioning for the Joggler Skin. We would be happy, if you share your results. You may create a patch of the changes that we can add to Jivelite.

    All the Best,
    Stefan

    22. June 2016 at 17:57 #20823

    Thanks Stefan for you post.

    I don’t know Lua so, just a question, what do i have to do just after having modify ClockApplet.lua file in order to test my change ?

    Restart lua, jivelite, nothing ?

    Thanks !

    2. July 2016 at 19:11 #21069

    Hi,

    I managed to modify function Digital:getDigitalClockSkin(skinName) for my C1 touchscreen :

    This is the new code, i don’t know if it’s very proper, but it’s works 🙂

    -- DIGITAL CLOCK SKIN
    function Digital:getDigitalClockSkin(skinName)
    	if skinName == 'WQVGAlargeSkin' then
    		skinName = 'WQVGAsmallSkin'
    	end
    	if  skinName == 'QVGATouchSkin' then
    	 	self.skinName = skinName
    		self.imgpath = _imgpath(self)
    	 	digitalClockBackground = Tile:loadImage(self.imgpath .. "Clocks/Radial/wallpaper_clock_radial.png")
    	 	skinName = 'QVGATouchSkin'
    	end
    	self.skinName = skinName
    	self.imgpath = _imgpath(self)

    	local s = {}

    	if skinName == 'QVGATouchSkin' then
    		screen_width, screen_height = Framework:getScreenSize()
    		local shiftx = math.floor((screen_width/2) - 260)
    		if shiftx < 0 then
    			shiftx = 0
    		end
    		local shifty = math.floor((screen_height/2) - 140)
    		if shifty < 0 then
    			shifty = 0
    		end

    		local digitalClockDigit = {
    			-- taille de l'heure
    			-- font = _font(143),
    			font = _font(110),
    			align = 'center',
    			fg = { 0xcc, 0xcc, 0xcc },
    			--w = 76,
    			w = 50,
    		}
    		local shadow = {
    			-- w = 76,
    			w = 50,
    			x = shiftx,
    		}

    		local x = {}
    				-- position sur x
                    -- x.h1 = 48 + shiftx
                    x.h1 = 10 + shiftx
                    -- x.h2 = x.h1 + 75
                    x.h2 = x.h1 + 60
                    -- x.dots = x.h2 + 75
                    x.dots = x.h2 + 60
                    x.m1 = x.dots + 39
                    -- x.m2 = x.m1 + 86
                    x.m2 = x.m1 + 71
                    x.alarm = x.m2 + 80
    		x.ampm = x.alarm

    		local _clockDigit = {
    			position = LAYOUT_NONE,
    			-- font = _font(143),
    			font = _font(110),
    			align = 'center',
    			fg = { 0xcc, 0xcc, 0xcc },
    			y = 54 + shifty,
    			zOrder = 10,
    		}
    		local _digitShadow = _uses(_clockDigit, {
    			-- y = 54 + 100 + shifty,
    			y = 35 + 100 + shifty,
    			x = shiftx,
    			zOrder = 1,
    		})

    		s.icon_digitalClockDropShadow = {
    			img = _loadImage(self, "Clocks/Digital/drop_shadow_digital.png"),
    			align = 'center',
    			padding = { 4, 0, 0, 0 },
    			-- w = 76,
    			w = 50,
    		}

    		s.icon_digitalClockNoShadow = _uses(s.icon_digitalClockDropShadow, {
    			img = false
    		})

    		s.icon_alarm_on = {
    			img = _loadImage(self, "Clocks/Digital/icon_alarm_digital.png"),
    		}
    		s.icon_alarm_off = {
    			img = false
    		}

    		s.icon_digitalClockHDivider = {
    			w = WH_FILL,
    			img = _loadImage(self, "Clocks/Digital/divider_hort_digital.png"),
    		}

    		s.icon_digitalClockVDivider = {
    			w = 3,
    			img = _loadImage(self, "Clocks/Digital/divider_vert_digital.png"),
    			align = 'center',
    		}

    		s.icon_digitalDots = {
    			img = _loadImage(self, "Clocks/Digital/clock_dots_digital.png"),
    			align = 'center',
    			w = 40,
    			border = { 14, 0, 12, 0 },
    		}

    		s.icon_digitalClockBlank = {
    			img = false,
    			w = 40,
    		}

    		s.Clock = {
    			bgImg = digitalClockBackground,
    			h1 = _uses(_clockDigit, {
    				x = x.h1,
    			}),
    			h1Shadow = _uses(_digitShadow, {
    				x = x.h1,
    			}),
    			h2 = _uses(_clockDigit, {
    				x = x.h2,
    			}),
    			h2Shadow = _uses(_digitShadow, {
    				x = x.h2,
    			}),
    			dots = _uses(_clockDigit, {
    				x = x.dots,
    				y = 93 + shifty,
    				w = 40,
    			}),
    			m1 = _uses(_clockDigit, {
    				x = x.m1,
    			}),
    			m1Shadow = _uses(_digitShadow, {
    				x = x.m1,
    			}),
    			m2 = _uses(_clockDigit, {
    				x = x.m2,
    			}),
    			m2Shadow = _uses(_digitShadow, {
    				x = x.m2,
    			}),

    			ampm = {
    				position = LAYOUT_NONE,
    				x = x.ampm,
    				y = 112 + shifty,
    				font = _font(11),
    				align = 'bottom',
    				fg = { 0xcc, 0xcc, 0xcc },
    			},
    			alarm = {
    				position = LAYOUT_NONE,
    				x = x.alarm,
    				y = 56 + shifty,
    			},
    			ampm = {
    				position = LAYOUT_NONE,
    				x = 403 + shiftx,
    				y = 144 + shifty,
    				font = _font(20),
    				align = 'bottom',
    				fg = { 0xcc, 0xcc, 0xcc },
    			},
    			horizDivider2 = { hidden = 1 },
    			today = { hidden = 1 },
    			horizDivider = {
    				position = LAYOUT_NONE,
    				x = 0 + shiftx,
    				y = 194 + shifty,
    			},
    			date = {
    				position = LAYOUT_SOUTH,
    				order = { 'dayofweek', 'vdivider1', 'dayofmonth', 'vdivider2', 'month' },
    				w = WH_FILL,
    				--h = 70,
    				h = 40,
    				padding = { 0, 0, 0, 6 },
    				dayofweek = {
    					align = 'center',
    					-- w = 190,
    					w = 115,
    					h = WH_FILL,
    					font = _font(20),
    					fg = { 0xcc, 0xcc, 0xcc },
    					padding  = { 1, 0, 0, 6 },
    				},
    				vdivider1 = {
    					align = 'center',
    					w = 3,
    				},
    				dayofmonth = {
    					--font = _font(56),
    					font = _font(30),
    					-- w = 95,
    					w = 80,
    					h = WH_FILL,
    					align = 'center',
    					fg = { 0xcc, 0xcc, 0xcc },
    					padding = { 0, 0, 0, 4 },
    				},
    				vdivider2 = {
    					align = 'center',
    					w = 3,
    				},
    				month = {
    					font = _font(20),
    					w = WH_FILL,
    					h = WH_FILL,
    					align = 'center',
    					fg = { 0xcc, 0xcc, 0xcc },
    					padding = { 0, 0, 0, 5 },
    				},
    				year = {
    					font = _boldfont(20),
    					-- w = 50,
    					w = 40,
    					h = WH_FILL,
    					align = 'left',
    					fg = { 0xcc, 0xcc, 0xcc },
    					padding = { 3, 0, 0, 5 },
    				},
    			},
    		}

    		local blackMask = Tile:fillColor(0x000000ff)
    		s.ClockBlack = _uses(s.Clock, {
    			bgImg = blackMask,
    			horizDivider = { hidden = 1 },
    			horizDivider2 = { hidden = 1 },
    			today = { hidden = 1 },
    			date = {
    				order = { 'dayofweek', 'dayofmonth', 'month', 'year' },
    			},
    			h1Shadow = { hidden = 1 },
    			h2Shadow = { hidden = 1 },
    			m1Shadow = { hidden = 1 },
    			m2Shadow = { hidden = 1 },
    		})
    		s.ClockTransparent = _uses(s.Clock, {
    			bgImg = false,
    			horizDivider = { hidden = 1 },
    			horizDivider2 = { hidden = 1 },
    			today = { hidden = 1 },
    			date = {
    				order = { 'dayofweek', 'dayofmonth', 'month', 'year' },
    			},
    			h1Shadow = { hidden = 1 },
    			h2Shadow = { hidden = 1 },
    			m1Shadow = { hidden = 1 },
    			m2Shadow = { hidden = 1 },
    		})
    	elseif skinName == 'QVGAlandscapeSkin' then

    		local digitalClockBackground = Tile:loadImage(self.imgpath .. "Clocks/Digital/bb_clock_digital.png")
    		local shadow = {
    			w = 62,
    		}
    		local _clockDigit = {
    			position = LAYOUT_NONE,
    			font = _font(100),
    			align = 'right',
    			fg = { 0xcc, 0xcc, 0xcc },
    			w = 62,
    			y = 48,
    			zOrder = 10,
    		}
    		local _digitShadow = _uses(_clockDigit, {
    			y = 116,
    			zOrder = 1,
    		})

    		local x = {}
                    x.h1 = 19
                    x.h2 = x.h1 + 50
                    x.dots = x.h2 + 65
                    x.m1 = x.dots + 15
                    x.m2 = x.m1 + 64
                    x.alarm = x.m2 + 61
    		x.ampm = x.alarm

    		s.icon_digitalClockDropShadow = {
    			img = _loadImage(self, "Clocks/Digital/drop_shadow_digital.png"),
    			align = 'center',
    			padding = { 4, 0, 0, 0 },
    			w = 62,
    		}

    		s.icon_alarm_on = {
    			img = _loadImage(self, "Clocks/Digital/icon_alarm_digital.png")
    		}
    		s.icon_alarm_off = _uses(s.icon_alarm_on, {
    			img = false
    		})
    		s.icon_digitalClockNoShadow = _uses(s.icon_digitalClockDropShadow, {
    				img = false
    		})

    		s.icon_digitalClockHDivider = {
    			w = WH_FILL,
    			img = _loadImage(self, "Clocks/Digital/divider_hort_digital.png"),
    		}

    		s.icon_digitalClockVDivider = {
    			w = 3,
    			img = _loadImage(self, "Clocks/Digital/divider_vert_digital.png"),
    			padding = { 0, 0, 0, 8 },
    			align = 'center',
    		}

    		s.icon_digitalDots = {
    			img = _loadImage(self, 'Clocks/Digital/clock_dots_digital.png'),
    			align = 'center',
    			w = 16,
    			padding = { 0, 26, 0, 0 },
    		}

    		s.icon_digitalClockBlank = {
    			img = false,
    		}

    		s.Clock = {
    			bgImg = digitalClockBackground,
    			h1 = _uses(_clockDigit, {
    				x = x.h1,
    			}),
    			h1Shadow = _uses(_digitShadow, {
    				x = x.h1,
    			}),
    			h2 = _uses(_clockDigit, {
    				x = x.h2,
    			}),
    			h2Shadow = _uses(_digitShadow, {
    				x = x.h2,
    			}),
    			dots = _uses(_clockDigit, {
    				x = x.dots,
    				w = 16,
    			}),
    			m1 = _uses(_clockDigit, {
    				x = x.m1,
    			}),
    			m1Shadow = _uses(_digitShadow, {
    				x = x.m1,
    			}),
    			m2 = _uses(_clockDigit, {
    				x = x.m2,
    			}),
    			m2Shadow = _uses(_digitShadow, {
    				x = x.m2,
    			}),

    			ampm = {
    				position = LAYOUT_NONE,
    				x = x.ampm,
    				y = 112,
    				font = _font(11),
    				align = 'bottom',
    				fg = { 0xcc, 0xcc, 0xcc },
    			},
    			alarm = {
    				position = LAYOUT_NONE,
    				x = x.alarm,
    				y = 50,
    			},
    			horizDivider2 = { hidden = 1 },
    			horizDivider = {
    				position = LAYOUT_NONE,
    				x = 0,
    				y = 173,
    			},
    			today = { hidden = '1' },
    			date = {
    				position = LAYOUT_SOUTH,
    				order = { 'dayofweek', 'vdivider1', 'dayofmonth', 'vdivider2', 'month' },
    				w = WH_FILL,
    				h = 65,
    				padding = { 0, 10, 0, 0 },
    				dayofweek = {
    					align = 'center',
    					w = 115,
    					h = WH_FILL,
    					font = _font(18),
    					fg = { 0xcc, 0xcc, 0xcc },
    					padding = { 0, 0, 0, 14 },
    				},
    				vdivider1 = {
    					align = 'center',
    					w = 2,
    				},
    				dayofmonth = {
    					font = _font(48),
    					w = 86,
    					h = WH_FILL,
    					align = 'center',
    					fg = { 0xcc, 0xcc, 0xcc },
    					padding = { 0, 0, 0, 12 },
    				},
    				vdivider2 = {
    					align = 'center',
    					w = 2,
    				},
    				month = {
    					font = _font(18),
    					w = WH_FILL,
    					h = WH_FILL,
    					align = 'center',
    					fg = { 0xcc, 0xcc, 0xcc },
    					padding = { 0, 0, 0, 14 },
    				},
    			},
    		}

    		local blackMask = Tile:fillColor(0x000000ff)
    		s.ClockBlack = _uses(s.Clock, {
    			bgImg = blackMask,
    			horizDivider = { hidden = 1 },
    			horizDivider2 = { hidden = 1 },
    			today = { hidden = 1 },
    			date = {
    				order = { 'dayofweek', 'dayofmonth', 'month', 'year' },
    			},
    			h1Shadow = { hidden = 1 },
    			h2Shadow = { hidden = 1 },
    			m1Shadow = { hidden = 1 },
    			m2Shadow = { hidden = 1 },
    		})
    		s.ClockTransparent = _uses(s.Clock, {
    			bgImg = false,
    			horizDivider = { hidden = 1 },
    			horizDivider2 = { hidden = 1 },
    			today = { hidden = 1 },
    			date = {
    				order = { 'dayofweek', 'dayofmonth', 'month', 'year' },
    			},
    			h1Shadow = { hidden = 1 },
    			h2Shadow = { hidden = 1 },
    			m1Shadow = { hidden = 1 },
    			m2Shadow = { hidden = 1 },
    		})

    	elseif skinName == 'QVGAportraitSkin'  then
    		local digitalClockBackground = Tile:loadImage(self.imgpath .. "Clocks/Digital/jive_clock_digital.png")
    		local digitalClockDigit = {
    			font = _font(90),
    			fg = { 0xcc, 0xcc, 0xcc },
    			w = WH_FILL,
    		}
    		local shadow = {
    			w = 62,
    		}
    		local _clockDigit = {
    			position = LAYOUT_NONE,
    			font = _font(90),
    			align = 'right',
    			fg = { 0xcc, 0xcc, 0xcc },
    			w = 62,
    			y = 123,
    			zOrder = 10,
    		}
    		local _digitShadow = _uses(_clockDigit, {
    			y = 185,
    			padding = { 4, 0, 0, 0 },
    			zOrder = 1,
    		})

    		local x = {}
                    x.h1 = 0
                    x.h2 = x.h1 + 49
                    x.dots = x.h2 + 62
                    x.m1 = x.dots + 4
                    x.m2 = x.m1 + 49
                    x.alarm = x.h1

    		s.icon_digitalClockDropShadow = {
    			img = _loadImage(self, "Clocks/Digital/drop_shadow_digital.png"),
    			align = 'center',
    			padding = { 4, 0, 0, 0 },
    		}

    		s.icon_alarm_on = {
    			img = _loadImage(self, "Clocks/Digital/icon_alarm_digital.png")
    		}
    		s.icon_alarm_off = _uses(s.icon_alarm_on, {
    			img = false
    		})
    		s.icon_digitalClockNoShadow = _uses(s.icon_digitalClockDropShadow, {
    			img = false
    		})

    		s.icon_digitalClockHDivider = {
    			w = WH_FILL,
    			img = _loadImage(self, "Clocks/Digital/divider_hort_digital.png"),
    		}

    		s.icon_digitalClockVDivider = {
    			w = 3,
    			img = _loadImage(self, "Clocks/Digital/divider_vert_digital.png"),
    			align = 'center',
    		}

    		s.icon_digitalDots = {
    			img = _loadImage(self, 'Clocks/Digital/clock_dots_digital.png'),
    			align = 'center',
    			w = 18,
    			padding = { 0, 0, 0, 0 },
    		}

    		s.icon_digitalClockBlank = {
    			img = false,
    		}

    		s.Clock = {
    			bgImg = digitalClockBackground,
    			h1 = _uses(_clockDigit, {
    				x = x.h1,
    			}),
    			h1Shadow = _uses(_digitShadow, {
    				x = x.h1,
    			}),
    			h2 = _uses(_clockDigit, {
    				x = x.h2,
    			}),
    			h2Shadow = _uses(_digitShadow, {
    				x = x.h2,
    			}),
    			dots = _uses(_clockDigit, {
    				x = x.dots,
    				w = 18,
    				y = 143,
    			}),
    			m1 = _uses(_clockDigit, {
    				x = x.m1,
    			}),
    			m1Shadow = _uses(_digitShadow, {
    				x = x.m1,
    			}),
    			m2 = _uses(_clockDigit, {
    				x = x.m2,
    			}),
    			m2Shadow = _uses(_digitShadow, {
    				x = x.m2,
    			}),

    			today = {
    				position = LAYOUT_NORTH,
    				h = 83,
    				zOrder = 2,
    				w = WH_FILL,
    				align = 'center',
    				fg = { 0xcc, 0xcc, 0xcc },
    				font = _font(20),
    			},

    			ampm = {
    				position = LAYOUT_NONE,
    				x = 203,
    				y = 208,
    				font = _font(14),
    				align = 'bottom',
    				fg = { 0xcc, 0xcc, 0xcc },
    			},
    			alarm = {
    				position = LAYOUT_NONE,
    				x = 12,
    				y = 209,
    			},
    			horizDivider = {
    				position = LAYOUT_NONE,
    				x = 0,
    				y = 320 - 84,
    			},
    			horizDivider2 = {
    				position = LAYOUT_NONE,
    				x = 0,
    				y = 84,
    			},
    			date = {
    				position = LAYOUT_SOUTH,
    				order = { 'month', 'vdivider1', 'dayofmonth' },
    				w = WH_FILL,
    				h = 83,
    				padding = { 0, 10, 0, 0 },
    				dayofweek = { hidden = 1 },
    				vdivider1 = {
    					align = 'center',
    					w = 2,
    					h = WH_FILL,
    				},
    				month = {
    					font = _font(20),
    					w = WH_FILL,
    					h = WH_FILL,
    					align = 'center',
    					fg = { 0xcc, 0xcc, 0xcc },
    					padding = { 2, 0, 0, 15 },
    				},
    				dayofmonth = {
    					font = _font(48),
    					w = 86,
    					h = WH_FILL,
    					align = 'center',
    					fg = { 0xcc, 0xcc, 0xcc },
    					padding = { 0, 0, 0, 15 },
    				},
    			},
    		}

    		local blackMask = Tile:fillColor(0x000000ff)
    		s.ClockBlack = _uses(s.Clock, {
    			bgImg = blackMask,
    			horizDivider = { hidden = 1 },
    			horizDivider2 = { hidden = 1 },
    			date = {
    				order = { 'month', 'dayofmonth' },
    			},
    			h1Shadow = { hidden = 1 },
    			h2Shadow = { hidden = 1 },
    			m1Shadow = { hidden = 1 },
    			m2Shadow = { hidden = 1 },
    		})
    		s.ClockTransparent = _uses(s.Clock, {
    			bgImg = false,
    			horizDivider = { hidden = 1 },
    			horizDivider2 = { hidden = 1 },
    			date = {
    				order = { 'month', 'dayofmonth' },
    			},
    			h1Shadow = { hidden = 1 },
    			h2Shadow = { hidden = 1 },
    			m1Shadow = { hidden = 1 },
    			m2Shadow = { hidden = 1 },
    		})

    	end

    	return s
    end

    3. July 2016 at 10:42 #21070

    So the photo you have looks like it’s on a little 3.5 inch touch screen right? Looks very good!

    Were do you put this code in what folder?

    Then it will just work?

    I never got the clock to work on my small screen.

    Looked on mine and I put that code at:

    /opt/jivelite/jivelite/share/jive/applets/Clock

    Named “getDigitalClockSkin” I don’t know if it’s the right place.

    -Raymond Day

    • This reply was modified 5 months, 1 week ago by  Raymond Day.
    3. July 2016 at 12:20 #21073

    So the photo you have looks like it’s on a little 3.5 inch touch screen right? Looks very good!

    This is this touchscreen : http://www.hardkernel.com/main/products/prdt_info.php?g_code=G142060963922
    3.2″ and 320 x 240 pix

    Were do you put this code in what folder?

    Then it will just work?

    You have to choose QVGATouchSkin for skin and change and replace function Digital:getDigitalClockSkin() by my code.

    I have commented almost all changes i made like this :

    			-- font = _font(143),
    			font = _font(110),

    This function is in this file /opt/jivelite/jivelite/share/jive/applets/Clock/ClockApplet.lua. After changes, you have to restart Jivelite.

    3. July 2016 at 16:20 #21074

    Wow it works! I all ready had the QVGATouchSkin picked.

    I had to edit the /opt/jivelite/jivelite/share/jive/applets/Clock/ClockApplet.lua file. Copy your code and paste it from — DIGITAL CLOCK SKIN about 3rd the way down in the ClockApplet.lua file, and stop were it starts to say –ANALOG CLOCK

    On the http webpage of max2play I restarted Java and quit a song playing. When it went to sleep mode in like 30 sec. I seen the clock!

    First time I seen it on the small screen!

    Thank you.

    They should add your code to the Update Max2Play under Settings / Reboot for this.

    Looks like it’s working good.

    But I don’t see the little lines around the date part like in your photo.

    My Max2play with the clock working 1st time on the 3.2 inch display!

    -Raymond Day

    3. July 2016 at 17:29 #21075

    Happy to see that 🙂

    You don’t have littles lines and shadow under numbers. I think some pics are missing on your system. They are in /opt/jivelite/jivelite/share/jive/applets/QVGATouchSkin/images/Clocks/Digital/

    You must have these files :

    And, i didn’t see the good background : /opt/jivelite/jivelite/share/jive/applets/QVGATouchSkin/images/Clocks/Radial/wallpaper_clock_radial.png

    • This reply was modified 5 months, 1 week ago by  Bristow.
    4. July 2016 at 9:25 #21077

    Just checked and I have all the files you listed here all ready.

    It works just be a little nicer with lines around the Date part.

    -Raymond Day

    4. July 2016 at 11:16 #21092

    Hi Bristow,

    thanks for sharing your code! I changed it a little to keep the JogglerSkin working and added the changes to the Jivelite installer in Max2Play. If anyone is interested: update Max2Play to the latest Beta version and install Jivelite from Source (not the compiled version).

    Stefan

    4. July 2016 at 21:21 #21167

    Raymond said : “Just checked and I have all the files you listed here all ready.”

    Maybe you don’t have right to read them. Can you write this code in a SSH console :
    ll /opt/jivelite/jivelite/share/jive/applets/QVGATouchSkin/images/Clocks/Digital

    If you don’t have rw-r–r– 1 root root on files, you can do :
    chmod 644 /opt/jivelite/jivelite/share/jive/applets/QVGATouchSkin/images/Clocks/Digital/*.png

    chmod 644 /opt/jivelite/jivelite/share/jive/applets/QVGATouchSkin/images/Clocks/Radial/*.png

    Flysurfer said : “I changed it a little to keep the JogglerSkin working and added the changes to the Jivelite installer in Max2Play”

    Good news, i knew that code was very dirty 🙂 Thanks !

    • This reply was modified 5 months ago by  Bristow.
    • This reply was modified 5 months ago by  Bristow.
    • This reply was modified 5 months ago by  Bristow.
    5. July 2016 at 13:25 #21198

    Installed the “Beta version and install Jivelite from Source (not the compiled version)” rebooted too but when it goes to sleep mode now just a blank screen.

    So looks like I have to edit the /opt/jivelite/jivelite/share/jive/applets/Clock/ClockApplet.lua file again.

    Not sure why it did not work with the bata and jivelite “Compile latest version from Sources (~20 Minutes)”

    -Raymond Day

    5. July 2016 at 13:40 #21201

    Wow. I did this again:

    I had to edit the /opt/jivelite/jivelite/share/jive/applets/Clock/ClockApplet.lua file. Copy your code and paste it from — DIGITAL CLOCK SKIN about 3rd the way down in the ClockApplet.lua file, and stop were it starts to say –ANALOG CLOCK

    But now it don’t start the clock! I even rebooted it. I guess the Beta version the clock don’t work with now.

    Do I have to install fresh again to uninstall the Beta version to get the clock working again?

    -Raymond Day

    5. July 2016 at 14:42 #21209

    Hi Raymond,

    did you choose the Digital Clock Screensaver in the Settings for the “When Off” setting (sounds like you have set Blankscreensaver in the “When Off” event)?

Viewing 30 posts - 1 through 30 (of 37 total)

You must be logged in to reply to this topic.

Register here
